PBX 3.1 Review a group and set its details

PBX 3.1 Groupes Aperçu

  • Open Gestionnaire PBX > Groupes.
  • Use Rechercher to locate an existing group.
  • Sélectionnez a group in the left list to manage it.
  • If the list is empty, select Add New Group.

A selected group opens on three tabs: Aperçu, Members and Numéross & Extensions.

Aperçu holds two sections:

SectionContents
Group Information"Configure the basic settings and details for this group." Contains Group Nom, placeholder Enter group name.
Features"Configure additional calling features and group capabilities." Contains Appeler ID Prepend.

Three controls sit at the bottom: Annuler, Save Changes and Delete Group.

Appeler ID Prepend is how an agent knows why the phone is ringing. It adds a marker to the caller ID shown on the handset, so a call arriving through the Support group is visibly different from a direct call. Set it on every group whose members also take direct calls.

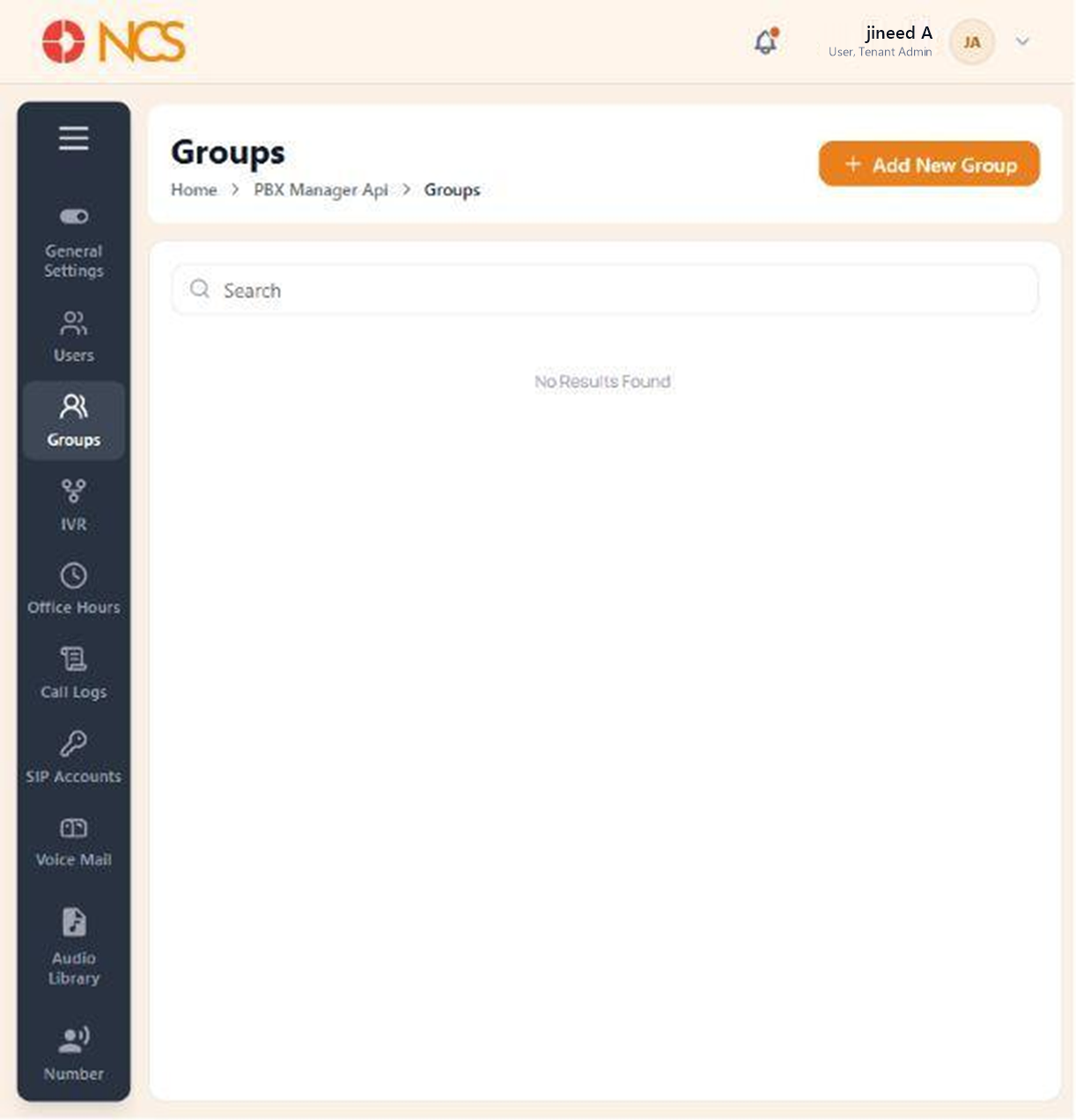

Figure key, PBX Groupes​

  • Fil d'Ariane.
  • Left navigation, with Groupes selected.
  • Rechercher field.
  • Group list, on the left.
  • Add New Group button.
  • Aperçu, Members and Numéross & Extensions tabs.
  • Group Nom field.
  • Appeler ID Prepend field.
  • Annuler, Save Changes and Delete Group buttons.
