PBX 7.2 Create a SIP account

Add SIP Device Form

The Add SIP Account form's fields are confirmed against the live build: Nama (Enter Nama), Username (Enter Username), an assignment selector defaulting to None, and a notification switch.

  • Open Pengurus PBX > Akaun SIP.
  • Pilih Add SIP Account.
  • Masukkan Nama. Nama it for the device, for example Reception desk phone, so the list stays readable.
  • Masukkan Username.
  • Pilih Assigned To, the user who will hold the account.
  • Set Notify On Unregister only if you want to be told when the device drops its registration. The form states that this is not recommended for mobile app users.
  • Pilih Save, or Batal.

Leave Notify On Unregister off for softphones and mobile apps. A mobile app unregisters every time the phone sleeps or changes network, so the setting produces continuous notifications that mean nothing. Reserve it for a desk phone whose registration should never drop.

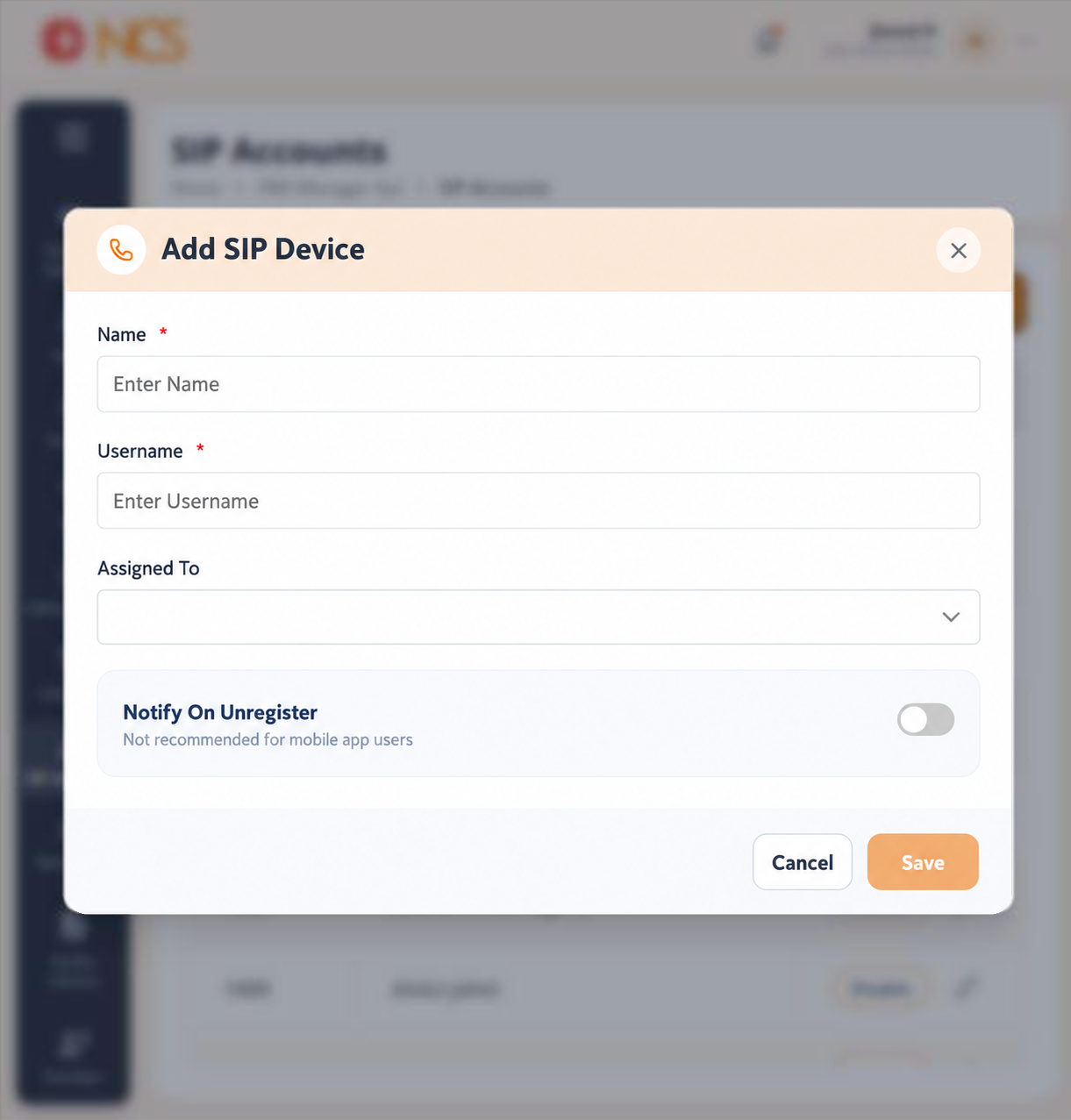

Figure key, Add SIP Device form​

  • Tajuk borang.
  • Nama field.
  • Username field.
  • Assigned To selector.
  • Notify On Unregister control, with its mobile-app advisory.
  • Batal button.
  • **Butang Simpan.
