PBX 2.1 Pilih and update a PBX user

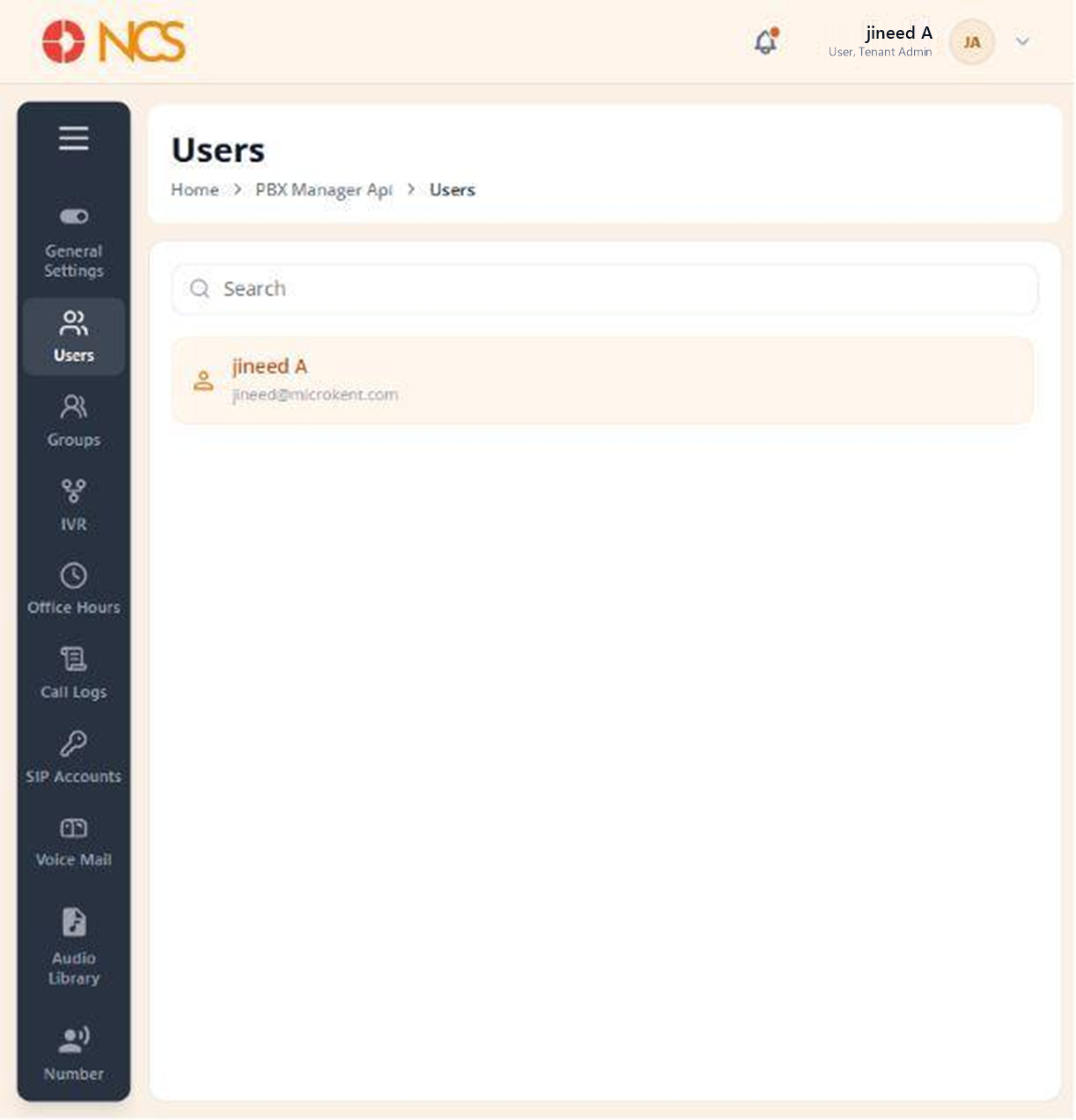

PBX 2.1 Pengguna Gambaran Keseluruhan

The user list runs down the left of the page, each entry showing the person's name above their email address. The record opens on four tabs: Gambaran Keseluruhan, Nombors & Extensions, Auto Provision and Features.

  • Open Pengurus PBX > Pengguna.
  • Use Cari to locate the user, then select them.
  • On the Gambaran Keseluruhan tab, under Basic Information ("Manage user profile and account details."), complete the fields:
MedanNotes
First NamaMarked mandatory with an asterisk.
Last NamaNot marked mandatory.
EmailMarked mandatory with an asterisk.
  • Set Status, described on screen as "Pengguna is active and can make/receive calls".
  • Pilih or clear Add to company directory. This is the working route into the company directory (see PBX 1.2).
  • Review the assigned Akaun SIP. The table shows Nama, Status and Tindakan, with a status such as Registered. Pilih Add SIP Account to assign another, or Unassign to remove the assignment shown.
  • Pilih Save, or Batal to discard.

Status here is telephony, not portal access. Setting a PBX user's Status so they cannot call is a different action from disabling their tenant user record (see 2.7 in the Penyewa module draft). A user can hold a live portal login and still be unable to place a call, and the two states are set on two different pages. When someone reports that they can sign in but cannot dial, check this Status first.

Figure key, PBX user Gambaran Keseluruhan​

  • Jejak Navigasi.
  • Left navigation, with Pengguna selected.
  • Cari field.
  • Pengguna list, with the selected user highlighted.
  • Gambaran Keseluruhan tab, selected.
  • Nombors & Extensions tab.
  • Auto Provision tab.
  • Features tab.
  • First Nama field.
  • Last Nama field.
  • Email field, disabled.
  • Status control.
  • Add to company directory control.
  • Akaun SIP section, with Add SIP Account and Unassign.
  • Batal button.
  • **Butang Simpan.
